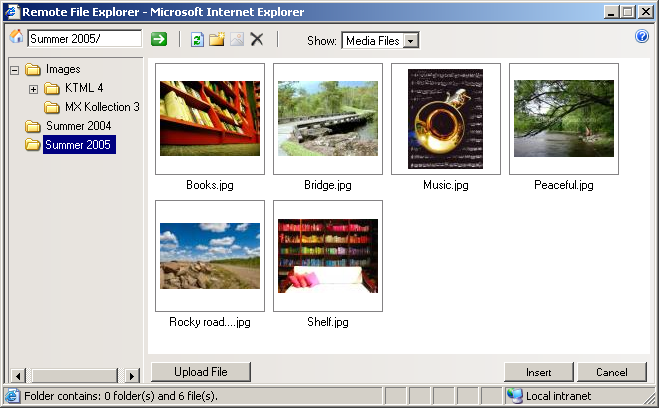

The Remote File Explorer window is displayed
when you click the Image, Link
to Document or Content Template buttons
from the toolbar, or similar buttons in certain Properties panels:
To learn how to work with this window, follow the instructions below:
A tree-menu explorer (folder navigator)
is displayed on the left, showing the folder structure on the server.
The files included in the selected folder are displayed as thumbnails
on the right. You can select one or more files (holding the Ctrl
or Shift key pressed). You can
copy, cut and paste files between folders. Files can also be renamed and
duplicated. For a complete description, check out the right-click contextual
menus when manipulating folders
and selecting files!
The next time you launch the Remote File Explorer, the folder that you worked with previously will be remembered and its content will be displayed.

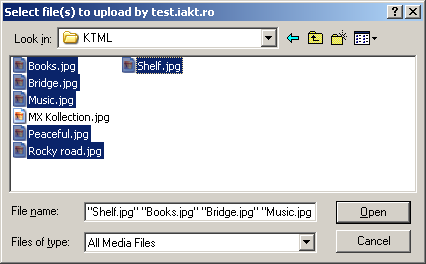

By clicking the Upload
File button, a window will pop-up offering the possibility to look
in the (local) folder structure. Browse to the needed folder, select one
or more files (hold the Ctrl or
Shift key for multiple selection),
and then click the Open button:
All the selected files will be uploaded to the remote server, and you can see them displayed as thumbnails in the Remote File Explorer window.
Note 1: The types of files that are by default allowed for upload are:
~ document types: .doc, .pdf, .csv, .xls, .rtf, .sxw, .odt
~ media file types: .bmp, .mov, .mpg, .avi, .mp3, .mpeg, .swf, .wmv, .jpg, .jpeg, .gif, .png
This file list can be modified according to your needs. Click to learn how to do it manually, in Dreamweaver, in Visual Studio.
Note 2: Remember that when uploading images, in case they exceed the maximum dimensions set in the configuration file, they will be boxed-resized. Read more here.
By clicking the Insert button,
all the files selected (hold the Ctrl
or Shift key for multiple selection)
in the current remote folder will be inserted in page.
Note: Document files will be inserted as links. Once a link is pressed, the document file stored on the remote server will be opened.
By clicking the Cancel button, the Remote File Explorer window will close and no file will be inserted in page (even though they are selected). This operation will not cancel the creation of new folders on the remote server or the upload of new files.
No matter what folder is currently selected in the tree-menu on the left, when you click the Home button, the home folder on the remote server will be accessed and its files will be displayed on the right. If you haven't done any specific settings in this regard, the home folder is by default the root folder.
The Home text box on top of
the interface displays the path to the current folder (that has its files
displayed as thumbnails in the files area on the right). The displayed
path is relative to the folder root defined in the File
In the Home text box you can also type the path to a certain folder (e.g. folder_1/folder_12/). If the folder is straight on the root, you can simply type its name. Once you click the Go button, the files in that folder will be listed on the right.
By clicking the Go button, the file browser will navigate to the folder specified (its path) in the Home text box. If the text box is empty, the files stored on the main root will be displayed in the files area on the right.

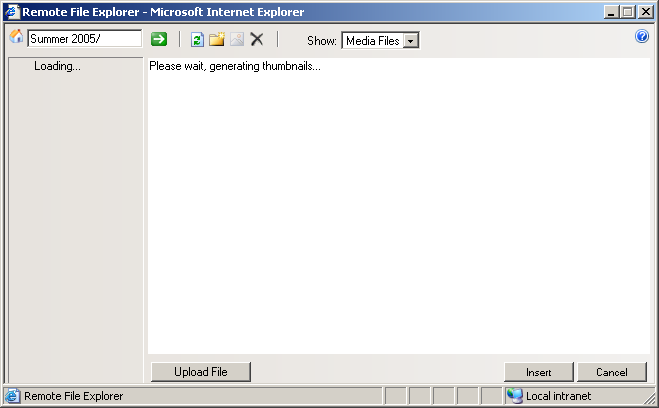

By clicking the Refresh button,
the content of the current folder will be refreshed: the included files
will be reloaded. This way, if any change occurred meanwhile in the folder
structure, it will become visible after refreshing:

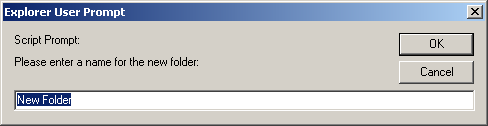

With the New Folder button
you can create new folders in the remote folder structure. Once you click
the New Folder button, you will be prompted
to enter a name for the new directory:
Note: The default name is New Folder. If you leave it like that, and then try to create another folder in the same parent one, the new suggestion will be New Folder 2, and so on (New Folder 3, New Folder 4, etc.).
If there is no folder selected when you click this button, the new directory will be created straight on the root.
If there is a folder selected, it will become the parent of the new directory.
The Edit Image button is only enabled when an image file is selected in the files area. Once clicked, it will open the KTML Image Editor window, that provides a complete set of operations to help bring images in perfect shape.

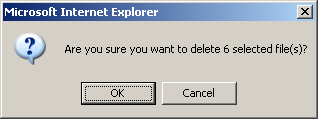

By clicking the Delete
button, you will be prompted to confirm the deletion of the currently
selected file(s) or folder from the remote server:
If the selected folder is empty, it will be deleted without asking for confirmation.
Note: The same operation can be performed by using the Delete key from the keyboard.
According to the upload
folders you set for document, media, and template files, the Show drop-down menu will display certain options.
Depending on the selected option, only files of the specified type from
the remote folder will be displayed (as thumbnails), simplifying your
The option selected in the Show drop-down menu also influences the files upload operation: when clicking the Upload File button, only the type of file specified in the Show drop-down menu will be displayed (in the folder from which you are uploading files).
All the possible options displayed in the Show drop-down menu (in different situations) are:
If the documents upload folder and the media files upload folder differ,
when you launch the Remote File Explorer window
by clicking the:
Note 1.1: In this situation, when the two upload folders differ (for media files and documents), there are two possible way in which you can create links to images:
You can upload the image in the documents upload folder and then create a link to it as if it were a document file.
upload the image in the media files upload folder and then create a thumbnail.
Note 2: If the documents upload folder and the media files upload folder are the same, when you launch the Remote File Explorer window by clicking either the Image or Link to Document button from the toolbar, the Show drop-down menu will contain the following options: All Files, Media Files, Images, Documents.
The Help button on the top-right corner of the interface has the same role as described here, just that it regards the Remote File Explorer interface.

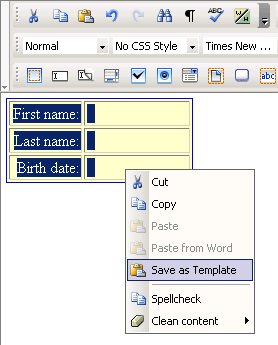

The Remote File Explorer
interface changes a little when it is called by clicking the Save
as Template option in the right-click contextual menu:

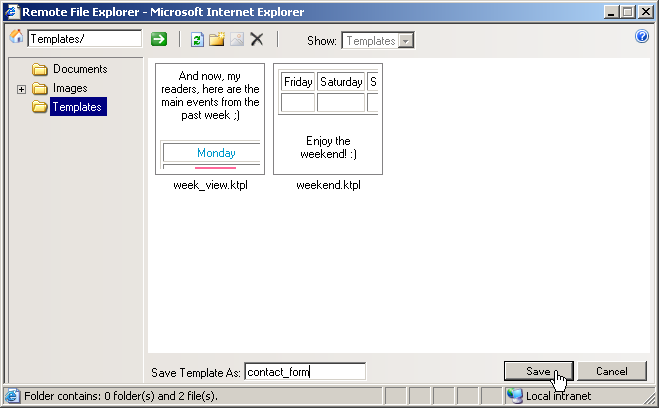

The difference stays in the fact that the Browse
and Select buttons are replaced (respectively)
by the Save Template As text box and the Save button:
In the Save Template As text box enter the name (without extension) of the new template file. The automatically added extension when saved is .ktpl.
Click the Save button after you named the template file and after you selected a folder in the tree-menu explorer. The template will be saved in the selected folder.
Notice that the Show drop-down menu is disabled and set on Templates. This is why only the template files in the current folder are displayed as thumbnails.
Note 1: The folder structure displayed in the tree-menu on the left can differ when you call the Remote File Explorer window using the Image button from when you call it using the Content Template button. This is set in the configuration options.
Note 2: The Ctrl+A, Ctrl+X, Ctrl+C, and Ctrl+V shortcut keys work in the Remote File Explorer as well, allowing you to select all, cut, copy, and paste files.
